High Mast LED Flood Light – Powerful Outdoor Illumination
Engineered for high-performance lighting in highways, ports, and stadiums, these 200W–400W LED flood lights deliver superior brightness, long life, and rugged outdoor durability.
High Mast LED Flood Lights 200W–400W | Outdoor Area Lighting Solution
High Mast LED Flood Lights (200W–400W) provide high-lumen output, uniform brightness, and long operational life for stadiums, ports, highways, and industrial areas. Built to perform in tough outdoor environments.
Specifications – High Mast LED Flood Lights
Parameter | Specification |
|---|---|
| Product Type | High Mast LED Flood Light |
| Wattage Range | 200W to 400W |
| Luminous Efficacy | 120–150 lm/W |
| Input Voltage | 100–277V AC, 50/60 Hz |
| Light Output (Lumens) | 24,000 – 60,000 lumens |
| LED Type | SMD / High-Power LED |
| Color Temperature (CCT) | 5700K (Daylight) ± 500K |
| Beam Angle | 60°, 90°, 120° |
| Power Factor | ≥ 0.95 |
| Total Harmonic Distortion | < 10% |
| Housing Material | Die-cast Aluminium with Powder Coating |
| Ingress Protection | IP66 / IP67 |
| Impact Protection | IK08 / IK10 |
| Surge Protection | 6kV to 10kV |
| Mounting Type | Bracket / Pole Top |
| Operating Temperature | -10°C to +50°C |
| Lifespan | >50,000 hours |
| Dimming Options | 0-10V / DALI / Non-Dimmable (Optional) |
| Certifications | BIS / RoHS / CE / ISO |
| Application Areas | Highways, Stadiums, Yards, Ports, Airports |
| Warranty | 2–5 Years (Model-dependent) |
Use Cases Across Industries & Projects
Explore powerful use cases of High Mast LED Flood Lights (200W–400W) for stadiums, ports, highways, airports, and large outdoor zones. Designed for performance, safety, and long-distance illumination.
Municipal & Government
- Highway and expressway lighting
- Public park and recreational area lighting
- Railway yard and terminal lighting
- Airport apron and runway lighting
- Smart city infrastructure projects
Commercial & Industrial
- Industrial yards and logistics terminals
- Large parking lots and vehicle depots
- Airport and seaport operations
- Outdoor warehouses and shipping docks
- Manufacturing plant perimeters
Special Use Case
- Mining zone lighting
- Container yard illumination
- Border area surveillance and floodlighting
- Sports stadium and arena floodlighting
- Large-scale event lighting (concerts, expos)
Use Cases Across Industries & Projects
From installation manuals to maintenance guides and warranty assurance, we provide end-to-end support for High Mast LED Flood Lights (200W–400W). Trusted by engineers, installers, and public sector buyers.
Installation Guide
- Pre-installation site assessment
- High mast pole compatibility check
- Bracket and angle adjustment
- Wiring and surge protection setup
- Safety guidelines for elevation mounting
Maintenance & Services
- LED driver health monitoring
- Cleaning lens and fixtures
- Remote diagnostics (if enabled)
- Thermal inspection and cooling checks
- Replacement protocol for damaged modules
Warranty & Assurance
- Up to 5-year warranty (model-specific)
- IP66-rated water and dust protection
- BIS and CE-certified for reliability
- Service center support across India
- 10kV surge protection warranty (select models)
Snapshots to Success – Designs, Installations & Innovation

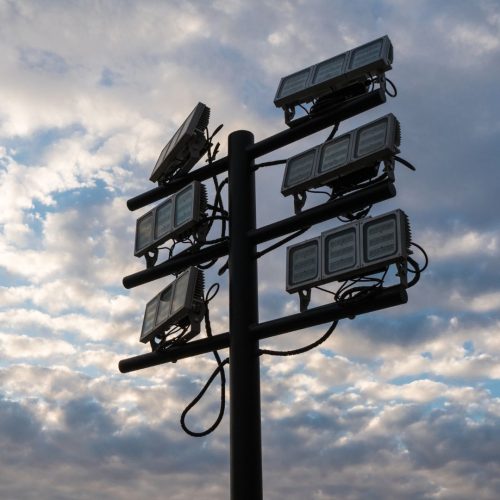

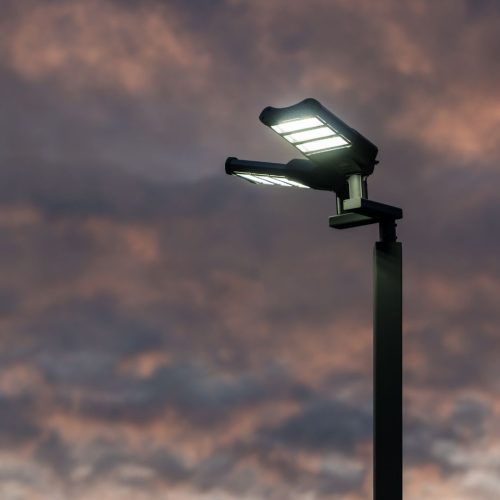

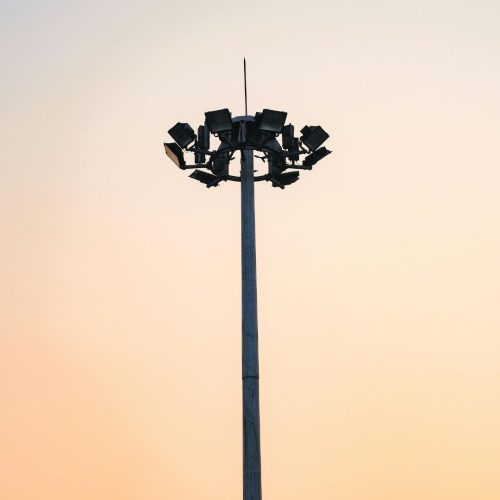

View our High Mast LED Flood Lights in action—real-world images of installations across stadiums, highways, ports, and yards. Explore product design, light distribution, and mounting options visually.
FAQs – What Customers Ask Most !
Get expert answers to common buyer questions on High Mast LED Flood Lights (200W–400W). From performance specs to installation queries, explore detailed insights built for industrial lighting decisions.
What are High Mast LED Flood Lights (200W–400W) used for?
These lights are used for illuminating large outdoor areas like highways, stadiums, ports, and industrial zones, offering high brightness and wide coverage.
How many lumens does a 200W or 400W high mast LED light produce?
A 200W fixture typically produces around 24,000 lumens, while a 400W unit can deliver up to 60,000 lumens, depending on design and LED type.
Are these LED flood lights suitable for stadium lighting?
Yes, High Mast LED Flood Lights (200W–400W) are ideal for stadiums due to their high lumen output, focused beam angles, and reliable outdoor performance.
What is the lifespan of high mast LED flood lights?
These lights offer over 50,000 hours of operational life, minimizing maintenance in high-elevation installations.
Do the flood lights come with surge protection?
Yes, most models feature built-in surge protection of 6kV to 10kV, suitable for industrial-grade power fluctuations
Can I dim these high mast LED lights?
Dimming options like 0-10V and DALI are available on request for select models, enhancing energy efficiency.
What mounting options are available for these flood lights?
They support bracket or pole-top mounting and can be adjusted for beam angles based on pole height.
Are your high mast flood lights waterproof?
Yes, they are IP66 or IP67 rated for water and dust ingress, making them fully outdoor-ready.
What certifications do the flood lights have?
Our models are BIS certified and comply with RoHS and CE safety standards, making them ideal for institutional use.
Where can I buy high mast LED flood lights in bulk in India?
You can purchase directly from Triveni Solar—manufacturers and bulk suppliers serving government, PWD, NHAI, and infrastructure projects.
