Certified Hydraulic Garbage Collection Vehicles
ISI-certified hydraulic garbage collection vehicles built for ULBs, Smart City missions, and PWD sanitation needs. MNRE-approved, BIS-compliant, and galvanized for durability. Ideal for municipal waste management tenders and EPC projects demanding high-performance, low-maintenance solid waste solutions.
Hydraulic Waste Compactor
Discover robust Hydraulic Garbage Collection Vehicles (8–18 m³ capacity) with high compaction ratio (up to 6:1), universal bin lifter for EN‑840 bins, and automatic PLC‑controlled hydraulic system. Built on 11–25 T GVW chassis with abrasion‑resistant steel, leak‑proof design and fast cycle time—ideal for efficient waste management.
Specifications – Hydraulic Garbage Collection Vehicles
Parameter | Specification |
| Container Capacity | 8–18 m³ (common 14 m³ variant) |
| Chassis GVW | 11 T / 16 T / 25 T (truck‐mounted) |
| Hopper Capacity | ~1.5–2 m³ |
| Compaction Ratio | 3:1 to 6:1 (varies with waste type) |
| Steel Material | ST‑52 / IS‑2062 equivalent high‑tensile, wear‑resistant |
| Steel Thickness (Floor / Side) | Floor 5 mm; sides/top 4–6 mm |
| Bin Lifter | EN‑840 standard bins: 120 L, 240 L, 660 L, 1100 L; up to ~800 kg |
| Hydraulic System | 170–190 bar pressure; 9 hydraulic cylinders; reservoir 80–240 L |
| Drive Options | 4×2 or 6×4 configuration |
| Compaction Cycle Time | ~20–40 seconds per cycle |
| Control System | PLC‑based control with manual/automatic/remote modes |
| Anti‑Leak Design | Double‑D rubber gasket; sealed body and tailgate |
| Safety Features | Safety props, locking valves, emergency stops |
Use Cases Across Industries & Projects
Explore diverse applications of MNRE-approved hydraulic garbage collection vehicles across municipal bodies, industrial zones, and specialized public infrastructure. Optimized for Smart Cities, PWD projects, and ULBs with high-efficiency waste compaction systems.
Municipal & Government
- Daily urban waste collection for ULBs and Smart Cities
- Solid waste transportation in PWD and Nagar Nigam zones
- Deployment in Swachh Bharat Mission programs
- Use by municipal corporations for door-to-dump waste handling
- Integration in city-wide waste management fleets
Commercial & Industrial
- Solid waste movement in industrial townships and SEZs
- Compaction-based disposal for factory and plant waste
- Integration with facility management companies for large campuses
- Cleanup operations in construction and infrastructure zones
- Display banners or signage for commercial campuses
Special Use Case
- Sanitation drives in rural or hilly terrains using smaller GVW variants
- Waste collection in defense cantonments and PSUs
- Deployment in disaster or relief operations with mobile fleets
- Airport and railway station garbage handling solutions
- Institutional campus management (universities, hospitals, etc.)
Use Cases Across Industries & Projects
Get complete technical support for MNRE-approved hydraulic garbage vehicles, including detailed installation guides, maintenance protocols, service coverage, and warranty info. Built for EPC contractors, ULBs, and fleet operators.
Installation Guide
- Step-by-step hydraulic system setup instructions
- Bin lifter alignment and chassis mounting procedure
- Tailgate locking mechanism setup and testing
- Hydraulic oil filling and cylinder priming guide
- Electrical wiring for PLC control and indicator lights
Maintenance & Services
- Periodic hydraulic oil change schedules
- Cylinder inspection and preventive seal replacements
- Tailgate and door leak-proof gasket checks
- Lubrication points and intervals
- Emergency hydraulic failure protocols
Warranty & Assurance
- Standard 12-month OEM warranty on hydraulic assembly
- Optional extended AMC (Annual Maintenance Contract)
- Warranty support via authorized local partners
- Onsite servicing for institutional contracts
- Genuine spare part availability assurance
Snapshots to Success – Designs, Installations & Innovation
Browse our visual gallery of MNRE-approved hydraulic garbage collection vehicles featuring high-res images, functional schematics, bin lifter systems, and real-world municipal deployments to help buyers assess form, fit, and compaction capabilities.
FAQs – What Customers Ask Most !
Find expert answers to common questions about MNRE-approved hydraulic garbage collection vehicles. Learn about specifications, government use, certifications, and operational advantages to make informed, compliant procurement decisions.
What is an MNRE-approved hydraulic garbage collection vehicle?
An MNRE-approved hydraulic garbage collection vehicle is certified by the Ministry of New and Renewable Energy for use in eco-friendly, efficient municipal solid waste transport with hydraulic compaction.
Are these vehicles suitable for Smart City tenders?
Yes, MNRE-approved hydraulic garbage collection vehicles are frequently specified in Smart City and ULB tenders due to their compliance with BIS and Swachh Bharat norms.
What capacity variants are available for hydraulic garbage compactors?
These vehicles typically come in 8 m³ to 18 m³ capacities and are mounted on 11–25 T GVW chassis, offering flexibility for urban, industrial, and rural deployments.
Can the bin lifter handle standard EN-840 bins?
Yes, the integrated hydraulic lifter supports EN-840 compliant bins, including 120 L, 240 L, 660 L, and 1100 L capacities.
Is the vehicle body leak-proof and rust-resistant?
Yes, the compactor body is galvanized or coated with anti-corrosive paint and includes double-gasket sealing to ensure leak-proof operation.
Do these vehicles support PLC-based automation?
Many MNRE-approved models include PLC-based control panels for automated compaction cycles and safety features.
Are hydraulic garbage compactors ISI and BIS certified?
Yes, compliant models meet ISI and BIS standards for structural integrity, hydraulic systems, and safety performance.
What type of maintenance is required?
Routine maintenance includes hydraulic oil changes, cylinder checks, bin lifter alignment, and periodic greasing of moving parts.
Are these vehicles compatible with existing municipal fleets?
Yes, they can be integrated with existing waste fleets and customized to align with local operational requirements.
How do these vehicles contribute to waste management efficiency?
They offer a 3:1 to 6:1 compaction ratio, reducing transport trips and enhancing fuel efficiency, which lowers overall municipal operating costs.
Related Products
Discover related products that complement your needs – durable, efficient, and affordable solutions for lighting, solar, and infrastructure projects.
E-Rickshaw Mounted Waste Bins
Compact, eco-friendly, mobile, durable, lightweight, cost-effective, ergonomic, weatherproof, versatile, customizable, easy-to-clean, and rust-resistant.

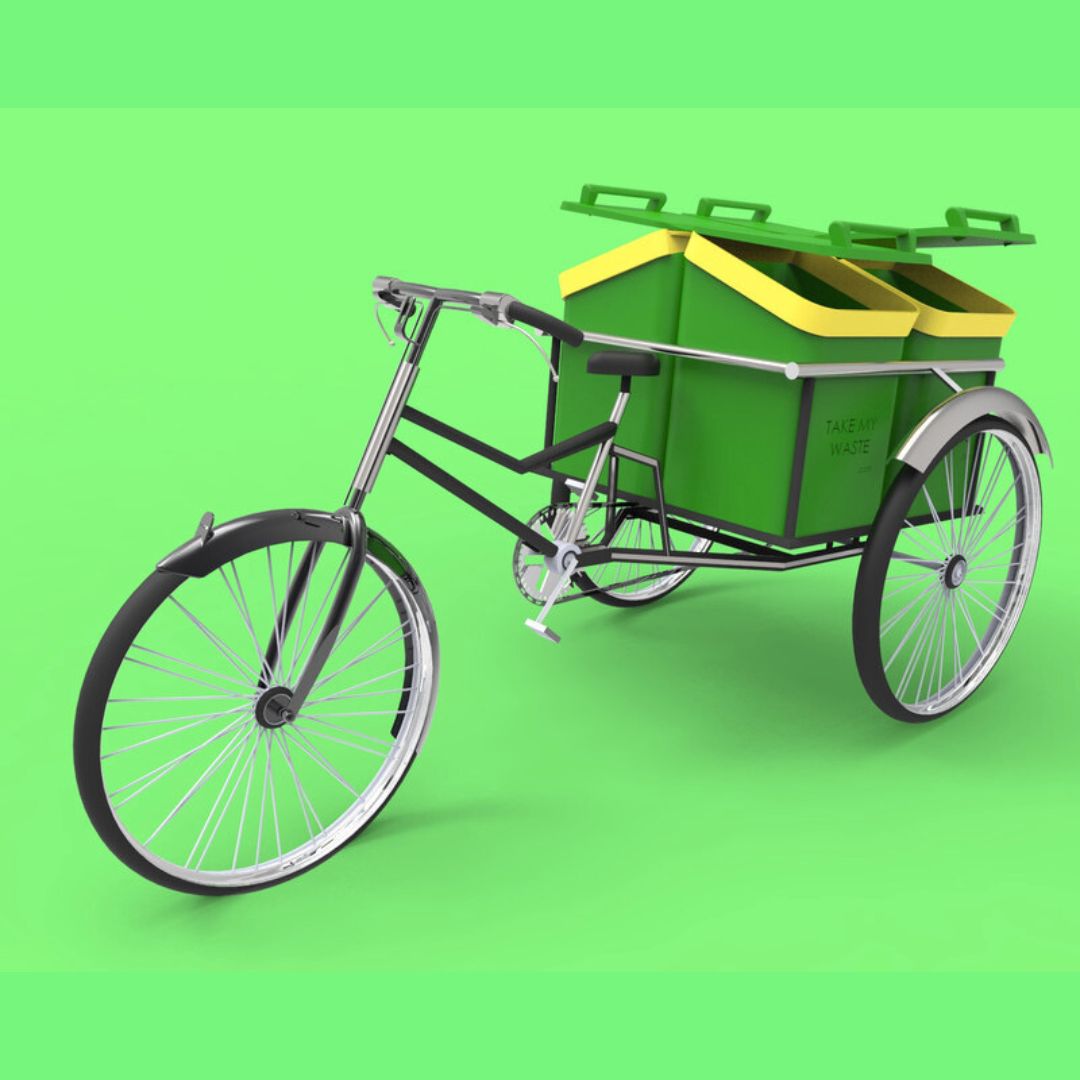

Electric Waste Collection Tricycles
